Leases and Lease Lifecycle

Leases are created in, and leveraged by, KCL to manage a stream's shards. This document should help provide insights into the lease lifecycle.

Nota bene (N.B.): while actual shard ids are formatted like shardId-000000000042, this document uses shardId[_-]42 for concision.

Leases

In KCL, a lease provides a temporal assignment between one Kinesis shard and an assigned worker. Leases are persistent for the duration of shard processing (detailed later). However, lease assignment is transient -- leases may be "stolen" by other workers in the same KCL application.

Lease Table

To persist metadata about lease state (e.g., last read checkpoint, current assigned worker), KCL creates a lease table in DynamoDB. Each KCL application will have its own distinct lease table that transcludes the application name. More information, including schema, is provided at KCL LeaseTable.

Lease Assignment

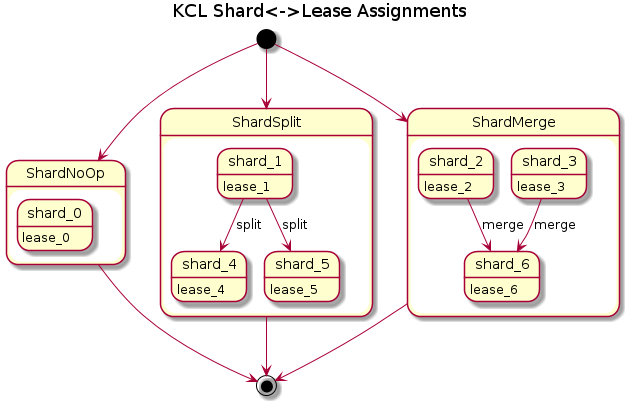

The "life" of a lease closely mirrors the duration that a shard is being processed.

Specifically, leases are unique to the shard and are not recycled for stream mutations (i.e., split, merge). Shards created by stream mutations will generate a new lease.

It should be noted that the number of tracked leases may exceed the number of shards. Per the diagram (above), this can occur when there are stream mutations propagating through KCL. For example, a 10-shard stream that is split on every shard may temporarily have up-to 30 leases: 10 original + 20 children.

N.B. Leases are uniquely identified by their leaseKey which looks vastly different than lease_X. For details on the leaseKey format, please see KCL LeaseTable.

Lease Lifecycle

Leases follow a relatively simple, progressive state machine: DISCOVERY -> CREATION -> PROCESSING -> SHARD_END -> DELETION

Excluding SHARD_END, these phases are illustrative of KCL logic and are not explicitly codified.

1. DISCOVERY: KCL shard-syncing identifies new shards. Discovered shards may result from:
   • First time starting KCL with an empty lease table.
   • Stream mutations (i.e., split, merge) that create child shards.
   • In multi-stream mode, dynamic discovery of a new stream.
2. CREATION: Leases are created 1:1 for each discovered shard, and initialized at the configured initial position.
   • Leases are only created if they are eligible for processing. For example, child shards will not have leases created until its parent(s) have reached SHARD_END.
3. PROCESSING: Leases are processed, and continually updated with new checkpoints.
   • In general, leases spend the majority of their life in this state.
4. SHARD_END: The associated shard is SHARD_END and all records have been processed by KCL for the shard.
5. DELETION: Since there are no more records to process, KCL will delete the lease from the lease table.
   • Deletion will only be triggered after all parents of a child shard have converged to SHARD_END. Convergence is required to preserve ordering of records between parent-child relationships.
   • Deletion is configurable yet recommended to minimize I/O of lease table scans.

Lease Syncing

Lease syncing is a complex responsibility owned by the "leader" host in a KCL application. By invoking the ListShards API, KCL will identify the shards for the configured stream(s). This process is scheduled at a configurable interval so KCL can self-identify new shards introduced via stream mutations.

For convenience, links to code:

• Scheduler: implementation
• LeaseCoordinator: interface, implementation
• PeriodicShardSyncManager: implementation
• ShardSyncTask: interface, implementation
• LeaseRefresher: interface, implementation
• LeaseSynchronizer: implementation
• HierarchicalShardSyner: implementation
• ShardDetector: interface, implementation

Lease creation is a deterministic process. Assume a stream has the following shard hierarchy:

Shard structure (each level depicts a stream segment):
  0 1 2 3 4   5    - shards till epoch 102
  \ / \ / |   |
   6   7  4   5    - shards from epoch 103 - 205
   \  /   |  / \
     8    4 9  10  - shards from epoch 206+ (still open)

Then NonEmptyLeaseTableSynchronizer would create leases dependent on the configured initial position. Assuming leases (4, 5, 7) already exist, the leases created for an initial position would be:

• LATEST creates (6) to resolve the gap on-par with epochs 103-205 which is required to eventually reach LATEST
• TRIM_HORIZON creates (0, 1) to resolve the gap starting from the TRIM_HORIZON
• AT_TIMESTAMP(epoch=200) creates (0, 1) to resolve the gap leading into epoch 200

Lease Balancing

KCL will, at a cadence configured by leaseDuration and epsilonMillis, attempt to "balance" leases across workers. Lease balancing is done to protect against stagnation if a worker stops updating the lease table (e.g., host failure). This operation is naive and only attempts to equally distribute leases across the available hosts; shards are not guaranteed to be equal in their put workloads, and balancing is blind to this I/O skew.

For convenience, links to code:

• LeaseCoordinator: interface, implementation
• LeaseTaker: interface, implementation
• LeaseRefresher: interface, implementation

Leases are stolen if-and-only-if there were zero expired leases and the looking-to-steal-worker desires more leases. Stolen leases are randomly selected from whichever worker has the most leases. The number of leases to steal on each loop is configured via maxLeasesToStealAtOneTime.

Customers should consider the following trade-offs when configuring the lease-taking cadence:

1. LeaseRefresher invokes a DDB scan against the lease table which has a cost proportional to the number of leases.
2. Frequent balancing may cause high lease turn-over which incurs DDB write costs, and potentially redundant work for stolen leases.
3. High maxLeasesToStealAtOneTime may cause churn.
   • For example, worker B steals multiple leases from worker A creating a numerical imbalance. In the next loop, worker C may steal leases from worker B.
4. Low maxLeasesToStealAtOneTime may increase the time to fully (re)assign leases after an impactful event (e.g., deployment, host failure).

Additional Reading

Informative articles that are recommended (in no particular order):

• https://aws.amazon.com/blogs/big-data/processing-amazon-dynamodb-streams-using-the-amazon-kinesis-client-library/
