Performance

There are many great routing libraries for Clojure(Script), but not many are optimized for perf. Reitit tries to be both great in features and be really fast. Originally the routing was adopted from Pedestal (which is known to be fast), but has been partially rewritten performance in mind. Hopefully some optimizations can be back-ported to Pedestal.

Rationale

Multiple routing algorithms, choose based on the route tree
Route flattening and re-ordering
Managed mutability over Immutability
Precompute/compile as much as possible (matches, middleware, routes)
Use abstractions that enable JVM optimizations
Use small functions to enable JVM Inlining
Protocols over Multimethods (or Maps)
Records over Maps
Always be measuring
Don't trust the (micro-)benchmarks

Does routing performance matter?

Well, it depends. With small route trees, it might not. But, with large (real-life) route trees, difference between the fastest and the slowest tested libs can be two or three orders of magnitude. For busy sites it actually matters if you routing request takes 100 ns or 100 µs. A lot.

Tests

All perf tests are found in the repo and have been run with the following setup:

;;
;; start repl with `lein perf repl`
;; perf measured with the following setup:
;;
;; Model Name:            MacBook Pro
;; Model Identifier:      MacBookPro11,3
;; Processor Name:        Intel Core i7
;; Processor Speed:       2,5 GHz
;; Number of Processors:  1
;; Total Number of Cores: 4
;; L2 Cache (per Core):   256 KB
;; L3 Cache:              6 MB
;; Memory:                16 GB
;;

NOTE: Tests are not scientific proof and may contain errors. You should always run the perf tests with your own (real-life) routing tables to get more accurate results for your use case. Also, if you have idea how to test things better, please let us know.

Simple Example

The routing sample taken from bide README:

(require '[reitit.core :as r])
(require '[criterium.core :as cc])

(def routes
  (r/router
    [["/auth/login" :auth/login]
     ["/auth/recovery/token/:token" :auth/recovery]
     ["/workspace/:project/:page" :workspace/page]]))

;; Execution time mean (per 1000) : 3.2 µs -> 312M ops/sec
(cc/quick-bench
  (dotimes [_ 1000]
    (r/match-by-path routes "/auth/login")))

;; Execution time mean (per 1000): 530 µs -> 1.9M ops/sec
(cc/quick-bench
  (dotimes [_ 1000]
    (r/match-by-path routes "/workspace/1/1")))

Based on the perf tests, the first (static path) lookup is 300-500x faster and the second (wildcard path) lookup is 4-24x faster that the other tested routing libs (Ataraxy, Bidi, Compojure and Pedestal).

But, the example is too simple for any real benchmark. Also, some of the libraries always match on the :request-method too and by doing so, do more work than just match by path. Compojure does most work also by invoking the handler.

So, we need to test something more realistic.

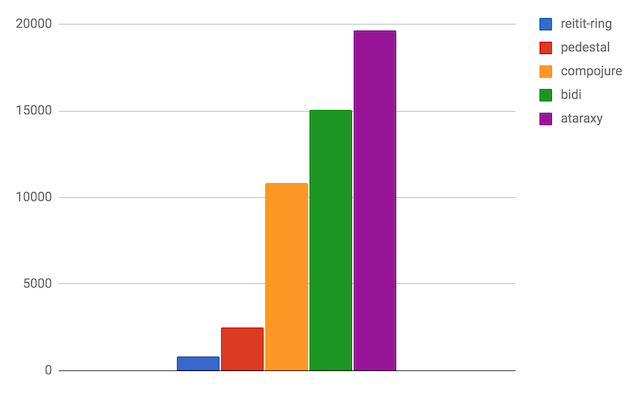

RESTful apis

To get better view on the real life routing performance, there is test of a mid-size rest(ish) http api with 50+ routes, having a lot of path parameters. The route definitions are pulled off from the OpenSensors swagger definitions.

Thanks to the prefix-tree algorithm, reitit-ring and Pedestal are fastest here.

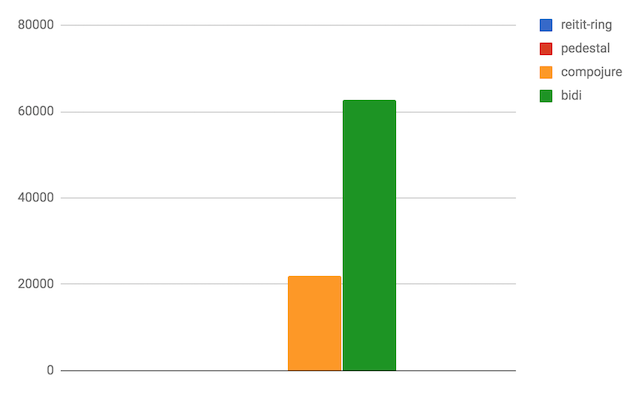

CQRS apis

Another real-life test scenario is a CQRS-style route tree, where all the paths are static, e.g. /api/command/add-order. The route definitions are pulled out from Lupapiste. The test consists of ~300 static routes (just the commands here, there would be ~200 queries too).

Again, both reitit-ring and Pedestal shine here, thanks to the fast lookup-routers. On average, they are two orders of magnitude faster and on best/worst case, three orders of magnitude faster than the other tested libs. Ataraxy failed this test on Method code too large error.

NOTE: If there would be even one wildcard route in the route-tree, Pedestal would fallback from lookup-router to the prefix-tree router, yielding constant, but order of magnitude slower perf. Reitit instead fallbacks to :mixed-router, still serving the static routes with lookup-router, just the wildcard route(s) with prefix-tree. So, the performance would not notably degrade.

Why measure?

The routing perf needs to be measured to get an internal baseline to optimize against. We also want to ensure that new features don't regress the performance. Perf tests should be run in a stable CI environment. Help welcome.

Looking out of the box

It might be interesting to compare reitit with the routers in other languages, like the routers in Go.

Performance tips

Few things that have an effect on performance:

Wildcard-routes are an order of magnitude slower than static routes
It's ok to mix non-wildcard and wildcard routes in a same routing tree as long as you don't disable the conflict resolution => if no conflicting routes are found, a :mixed-router can be created, which internally has a fast static path router and a separate wildcard-router. So, the static paths are still fast.
Move computation from request processing time into creation time, using by compiling middleware & route data.
- Unmounted middleware (or interceptor) is infinitely faster than a mounted one effectively doing nothing.
